GangPro-ARM (X2S)
Main Product Features (Software Features and Details Page) :
- Embedded Flash programmer. XStreamPro-Iso hardware adapter runs with GangPro-ARM and FlashPro-ARM software.
- Program up to Six (6) targets simultaneously.Ā
- Supports JTAG, cJTAG, and SWD communication.Ā
- Programmable JTAG/SWD clockĀ up to 20 MHz, effective throughput up to 1 MBytes/s.
- Standalone Mode in FlashPro mode (Auto Program with GO button from internal flash) - ARM (select vendors listed below, full support coming soon).
- Ethernet and USBĀ connectivity.Ā Ā Ā
- Power supply from adapter available, up to 200 mA.
- Deep-SleepĀ mode current measurement fromĀ 5 nAĀ to 200 mA.Ā Ā
- Customizable Vcc from 1.2 to 4.0V.Ā
- Galvanic Isolation between computer and target (XStreamPro-Iso up to 1.0kV)
- CMSIS-DAP 2.0 ARM Debugger includedĀ (IAR EWARM, Keil uVision, etc. debugging support).Ā Debugger features.
- Benchmarks
Programs MCUs from ALL of these Vendors:
- Texas Instruments (MSP M0/432, CC SimpleLink, TIVA-C),
- ST Microelectronics (STM32 Lx, Fx, Hx, Gx, Ux, WB, WL, BlueNRG),
- Silicon Labs (EFM32, EFR32, EM zigbee, SIM3),
- Silergy (MAX),
- Renesas (Synergy),
- NXP/Freescale (Kinetis, LPC, S32K, K32x, i.MX RT, and more),
- Nordic Semiconductor (nRF) + standalone,
- Microchip/Atmel (SAM),
- Maxim Integrated (MAX),
- Marvell (88M),
- Infineon/Cypress (FM0+, FM3, FM4, PSoC 4, PSoC 5LP, PSoC 6, Traveo),
- Analog Devices (Precision),
- Active-Semi (PAC).
Software Package:
- Easy to use GUI runs onĀ Windows(TM) XP, 7, 8, 10, and 11.
- Shared library and Command-Line support (Debian Linux).
- DLL and Command-Line support (Windows).
- C++, C#, Python code examples provided.
- Download installer for:Ā Windows,Ā Debian (x86-64), andĀ Debian (ARM)
- Debugging User Guide
Package contains:
-

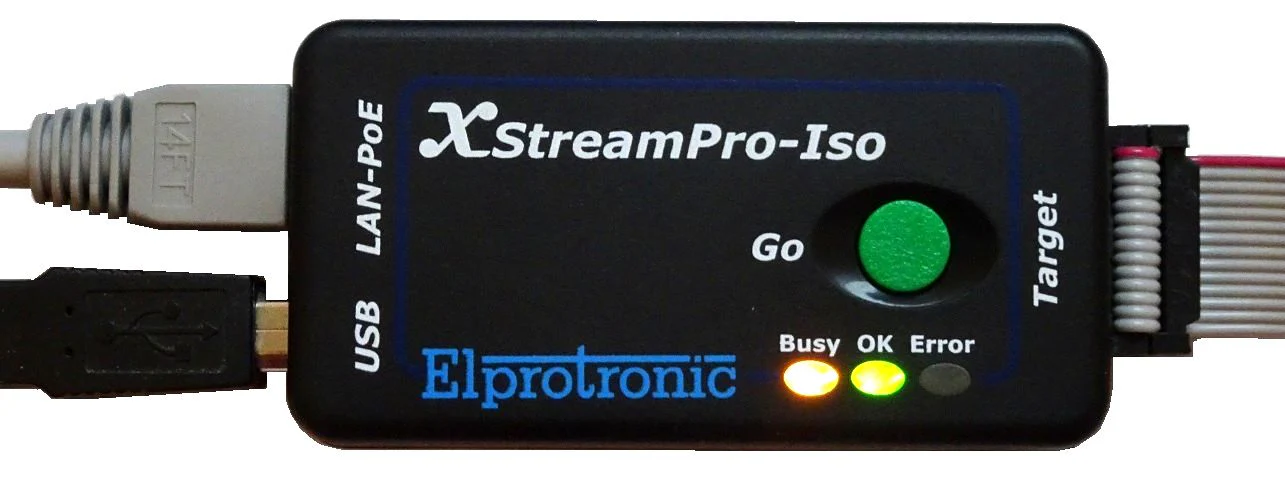

XStreamPro-Iso 1.4 programming adapter (14-pin connector),
- USB cable,
- ARM 14-pin to 20-pin/10-pin adapter with two ribbon cables (20-pin and 10-pin),
- One Year Warranty,
- Unlimited time software usage license, no limit on number of programmed devices,
- No code size limitations,
- One Year free software updates,
- Software Update License Renewal is optional (only needed for updates to run newer software version after one year).Ā Already used software version will run indefinitely, with no need for license renewal.
- *GangSplitter-ARM not included*
